#EMConf: ECG


Acute myocardial injury in COVID19:

  • Most common: Type 2 MI = demand ischemia
  • Type 1 MI = STEMI
  • Acute cardiomyopathy – acute myocarditis, acute pericarditis, or acute stress cardiomyopathy


Acute myocarditis – myocardial inflammation in absence of ischemia

            Many causes (viral, bacterial, immune, etc)

            ECG most common finding = sinus tachycardia w/ nonspecific ST/T changes

                        Can see STEMI, wide QRS, prolong QTc, TWI

            *persistent tachycardia in viral syndrome*

Can cause cardiogenic shock or arrhythmias

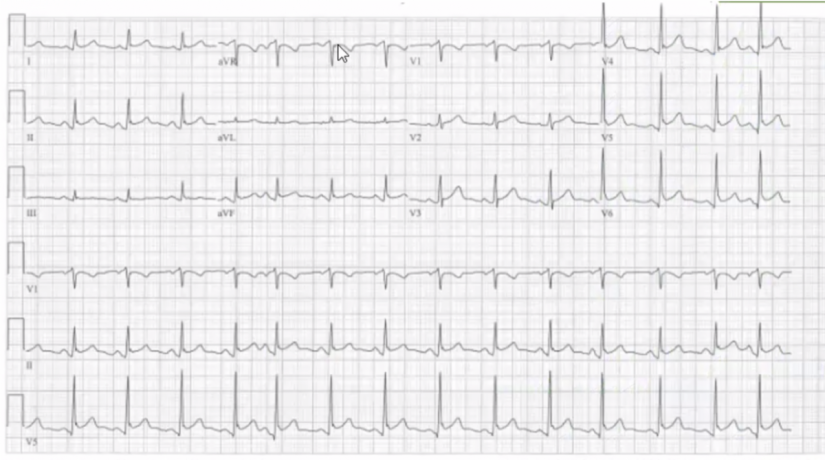

Example: Patient with myocarditis


Acute pericarditis – diffuse STE w/ PR depression (prominent in II, V5), STD in only aVR and V1



Acute stress cardiomyopathy (Takotsubo)

            New ECG changes w/ STE or TWI

                        Can see prolong QTc

            Transient akinesia/dyskinesis of LV

Hypokinetic mid to apical segment, hyperkinetic base

            Cardiac cath w/ nonobstructive CAD
